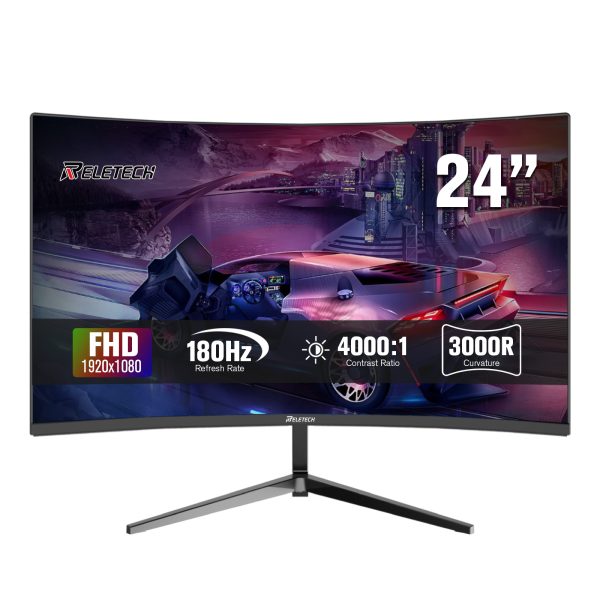

Product Model
G25F180
Product Size
24 Inch
Product Color
Black
List of main devices
LCD / glass
BOE QF238FHB-NF0
Panel Type
VA
Motherboard
CVT ME.RT2556Q.EB818/12V
Adapter / built-in power supply
DC 12V 3A
Keyboard
Five keys
Display performance
Screen size
24 Inch

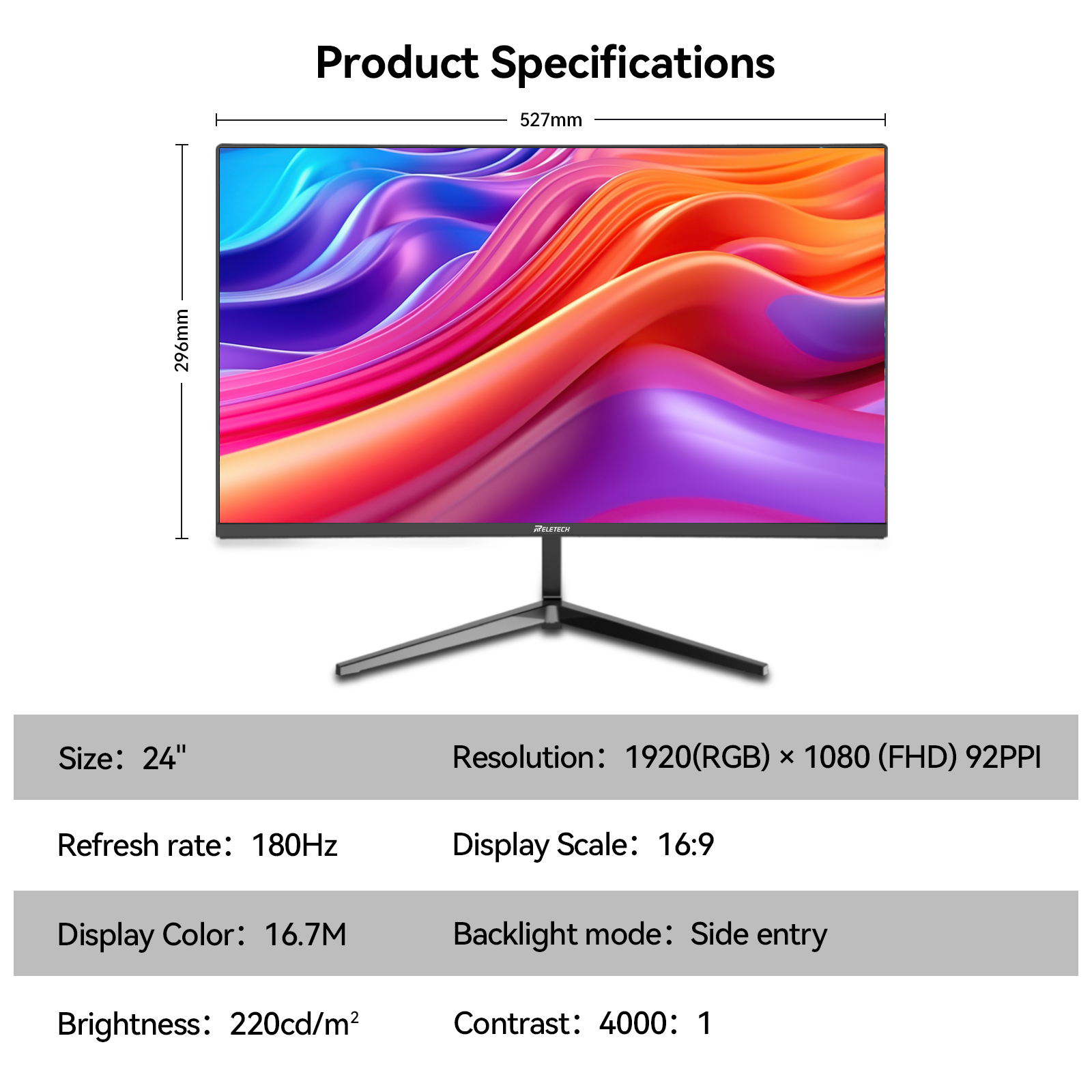

Valid display area
527.04 ×296.46 mm (H ×V)
Resolution ratio
1920(RGB) × 1080 (FHD) 92PPI

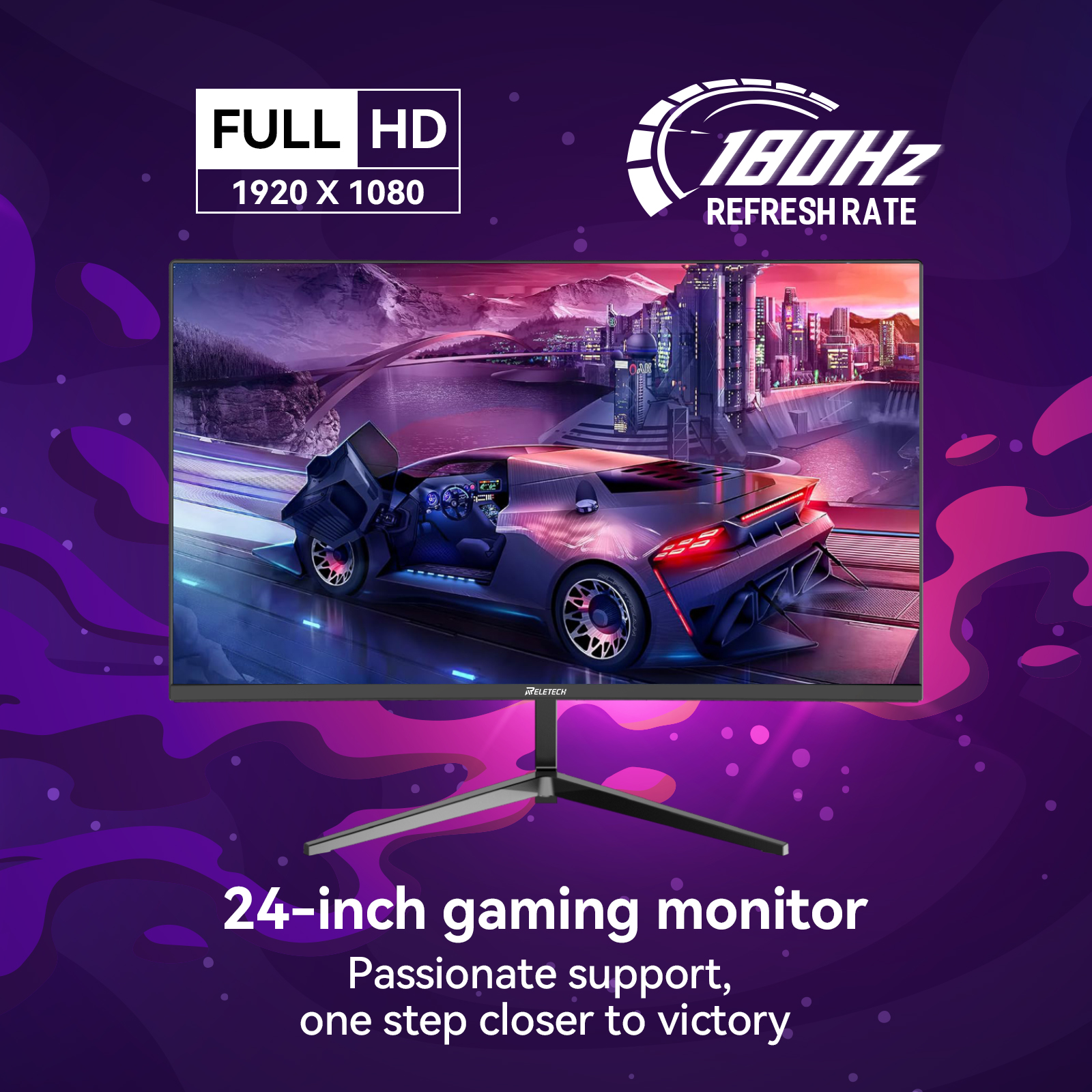

Scan frequency
180Hz
Show the proportion
16:9
Display color
16.7M (8-bit)
Backlit way
Side into the type
Luminance
220cd/m2
Curvature
3000R
Contrast ratio
4000:1
Response time(excluding OD)
14 (Typ.)(G to G) ms
Visual Angle
Full perspective
Inputoutput interface
HDMI
1* MAX1920*1080@180Hz
Software function
OSD language
Chinese / Japanese / British / Italian / Spanish / Korean / French / Russian, etc.
Brightness control
Support
Program upgrade
Support for DP / HDMI serial port upgrade
Plug and play
Support
Sleep standby function
Support
HDMI CEC
/
Power supply and power consumption
Input voltage
DC 12V 3A
Standby power consumption
≤0.23W
Maximum power consumption (rated power level)
36W

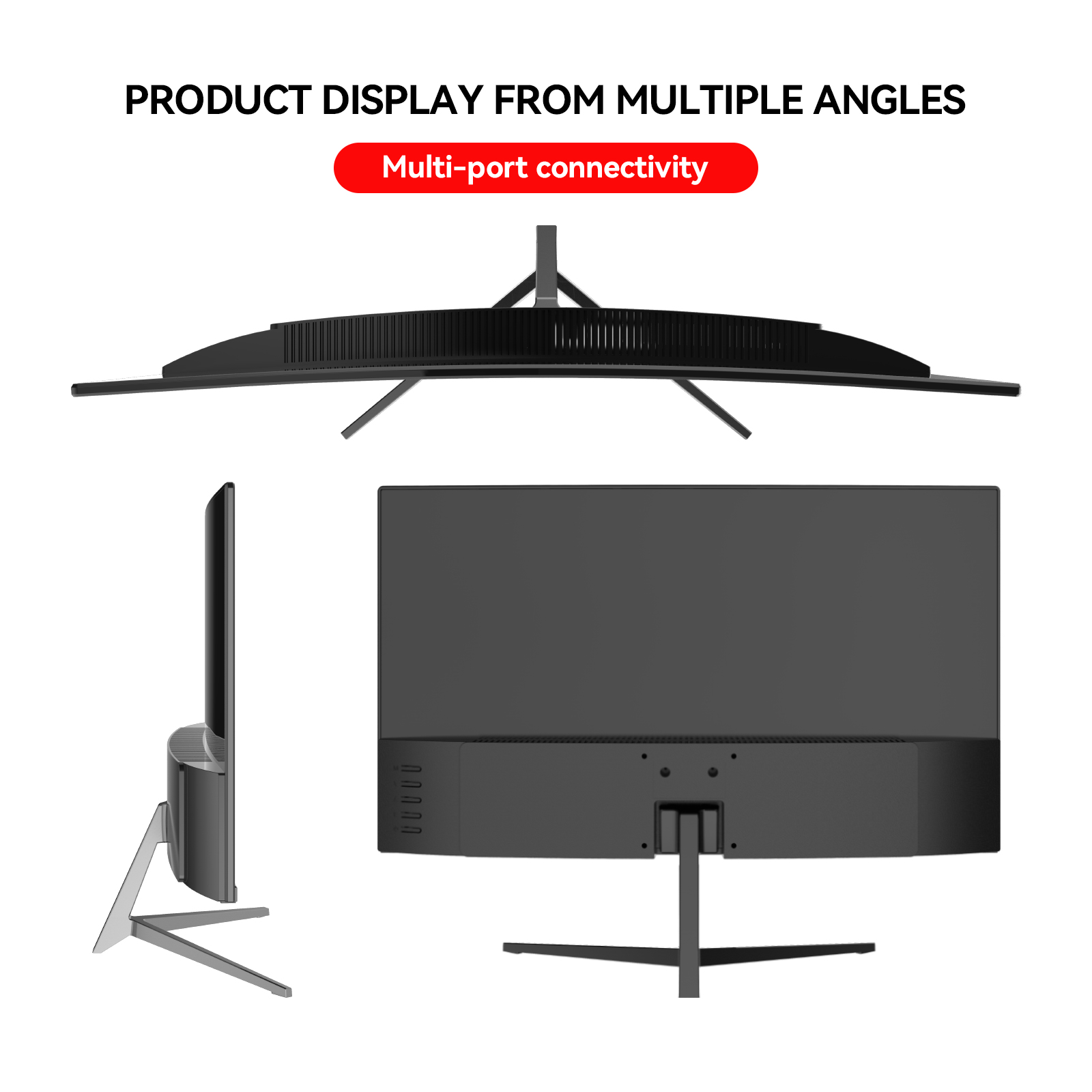

Mechanical structure size
Housing size (including the base)
H/W/T：547.45*415.34*7.52mm
Housing size (excluding support base)
H/W/T：541.45*317.84*7.52mm
Carton size
H/W/T：574mm*92mm*365mm
Complete machine net weight
2.5kg
The machine gross weight
3.35kg
Other
Annex list
Complete machine, base, support, manual, HDMI line, adapter
